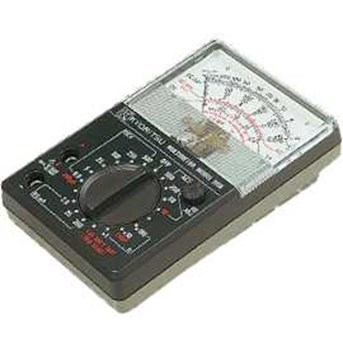

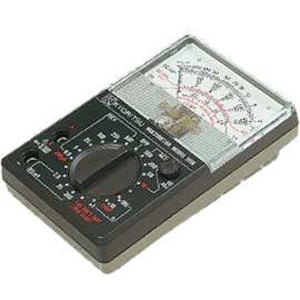

KYORITSU 1106

• Mirrored scale for easy and accurate reading. • Fuse and diode protected circuit (except 15A AC range). • Output terminal to cut off DC component when measuring AC voltage. • Safety designed input terminals and test leads. Do not make voltage measurements on industry power lines of 250V or higher. DC V : 0.5/5/25/100/250/500V (5k©/V) |±3% of FS AC V : 10/50/250/500V (2.5k©/V) |±3% of FS DC A : 200µA/2.5/25/250mA |±3% of FS |±5% of FS (250mA) © : 3/30/300k© |±3% of scale length Temperature : -20ºC~+150ºC |±5ºC (0ºC~+100ºC) |±10ºC (other ranges) (with the use of Temperature probe 7060) Battery Test : 2V (20© load) Withstand Voltage : 3000V AC for 1 minute Power Source : R6P (AA) (1.5V) × 1 Dimensions : 130(L) × 85(W) × 38(D)mm Weight : 175g approx. Accessories : 7066 (Test Leads) 8901 (0.5A/250V fuse) × 1 R6P (AA) × 1 Instruction Manual Optional : 9059 (Carrying Case) 7060 (Temperature Probe)
